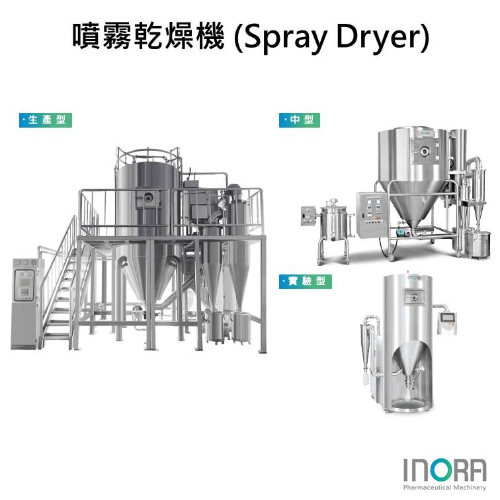

Spray Dryer



Model: YS-SD

Category: Nutraceutical Equipment

Exhibitor: INORA PHARMACEUTICAL MACHINERY CO., LTD.

Booth No: L918



Characteristic



●Function
Dry into powder from the solution or paste liquid.

●Theory
Heated and purified air flows into the column through exhaust and suction fan, use one set of fast rotating spray nozzle to atomize the solution or paste liquid which sent by pump into very small drop, the drop will combine with heated air and moisture evaporated to get drying purpose. The original solid ingredient will be collected by collector.

●Application
Chinese herbal medicine, meat seasoning,fruit flavored powder, milk powder, chemical raw materials.

●Feature
1. Dry into powder from the solution or paste liquid.
2. The original essence of material will not be changed after drying.
3. Able to dry high viscosity and concentration liquid.
4. Instant dry, short drying time.
5. Even for hot sensitive materials, also can retain original color, flavor and smell.
6. Air volume control is proportional by automatic air gate.
7. PLC auto control system or touch screen interface for easy operation.
8. Explosion proof system is available for organic solvent process.
9. Optional equipment for different product feature.
10. All the design and manufacture are qualified cGMP standard and FDA requirement.
