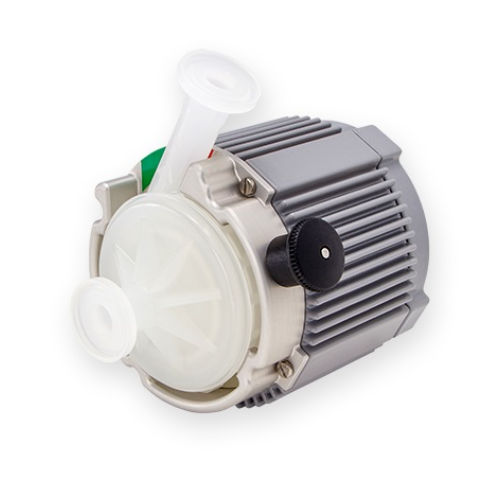

PuraLev® 200SU Low Shear Single-Use Pump for Bioprocessing

Model: PuraLev® 200SU

Exhibitor: LEVITRONIX GMBH TAIWAN BRANCH

Booth No: L707

Characteristic

The PuraLev® 200 Single-Use pump is designed for demanding fluid applications in bioprocessing where extremely low shear, pulsation-free, and continuously controlled flow ensure the highest product yield. Based on the principle of magnetic levitation, the pump impeller is suspended, contact-free, inside a sealed casing and is driven by the magnetic field of the motor resulting in a continuous smooth flow. The pump head is made of gamma stable polypropylene that meets the highest biocompatibility requirements such as FDA, USP-VI, and BSE/TSE free. The pump head is disposable and can be exchanged in few seconds. Fluid flow rate and pressure are precisely controlled by electronically regulating the impeller speed.

BioProcess Benefits with Levitronix® PuraLev® Pump Series:
1. Lowest shear stress
2. Pulsation free flow
3. Longest lifetime
4. Widest flow range
5. High flow/ small footprint
6. Intrinsically safe (no risk of silicone tubing rupture)
7. Highest purity (no wear and tear, lowest particle shedding)
8. Scalability
9. Processing of liquid-solid mixtures (microcarrier and resin transfer application suitable)
10. Automized process control (closed-loop feedback control)
11. Ideal for continuous processing

Levitronix® in Bioprocess Applications：
1. Cell perfusion
2. Depth filtration/Clarification
3. Shear-sensitive biological fluid transfer
4. Tangential flow filtration (UF/DF)
5. Blending

PuraLev® 200SU Specification:
1. Max flow: 21 lpm / 5.5 gpm
2. Max diff. pressure: 2.0 bar / 29 psi
