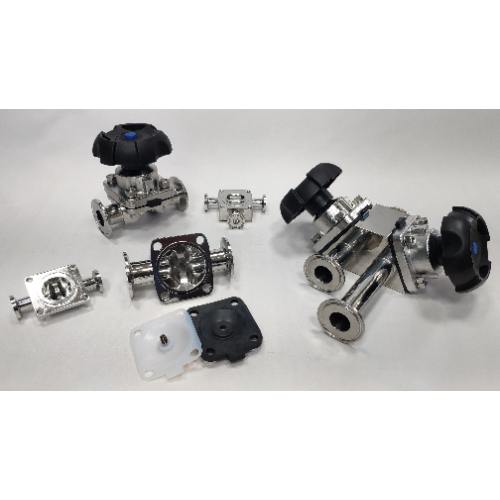

3A Diaphragm Valve



Model: Diaphragm Valve

Category: Pharmaceutical Equipment

Exhibitor: CSE. CHIANG SUNG ENTERPRISE CO., LTD.

Booth No: L017



Characteristic



The standard pneumatic/manual two-way diaphragm valve body is made of forged or casting 316L stainless steel, which meets the ASME BPE surface standard. For many years, CSE Group has always adhered to the highest principles of reaching "minimum residual volume" and "zero dead angle" when designing diaphragm valves. A uniform surface for kept purity fluid maintain stable quality. The α angle design of the valve body also allows the cleaning liquid to be completely drain out without causing stagnation to maintain a sterile cavity. In addition, cast or Forged valve bodies can be provided according to customer requirements.

CSE GROUP Diaphragm valves
According & Approval by PIC/S GMP standard also qualify by National Institutes of Health (NHRI)...and other famous pharmaceutical companies.
The design of this diaphragm valve can be widely used in systems with high aseptic requirements such as food, beverage, dairy products, brewing, biopharmaceutical fields and water for injection.

Material:
Body:Forged/316L
Diaphragm:EPDM+PTFE/NC or NO
The seal of Diaphragm is exchangeable
with GEMU
Connection:
Clamp end/weld end
Body type:
Direct connection(two way)/equal T/
reducing T/U-point.....
Operation:
Normal open/normal close
Work temp:
Diaphragm:EPDM+PTFE(-10°C~150°C)
Work pressure:
Max:10 Bar
Surface:
SF1:ID polished to Ra≦0.5μm
SF4:EP finished to Ra≦0.38μm
ID/OD mirror polished & ID Ra≦0.5μm/OD sand blasted.....
