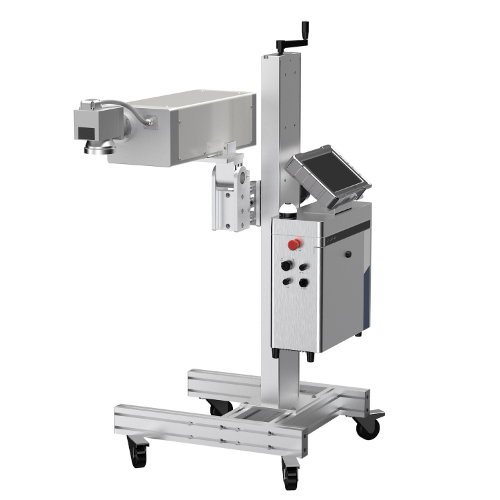

UV Laser Marking System

Model: IU-Laser 10

Category:

Booth No: N/A

Characteristic

Equipped with a 720-degree rotating laser head, suitable for various automated production needs. High-precision beam control allows for fine pattern marking on high-density materials, maintaining the aesthetic quality of the products. The intelligent touch screen control system is stable and reliable, easy to operate, and equipped with a high-performance core chip, reducing the risk of malfunction. With marking speeds up to 12000mm/s, it supports efficient and precise marking of complex patterns. This device is easy to integrate and features a high-transparency coated field lens to expand the marking area. To enhance product safety, the equipment also supports traceability systems, suitable for marking and tracking applications in various industries.

Performance Data

Power: 10W
Laser Wavelength: 355nm
Marking Speed: ≤12000mm/s
Marking Method: High-precision two-dimensional scanning
Marking Range: Standard 110mm×110mm, optional up to 600mm×600mm
Production Line Speed: 0~189m/min (depending on material and content)
Language Support: English, Chinese, Korean, Russian, German, Arabic, etc.
Barcode/QR Code Support: CODE39, CODE128, CODE126, QR, Z-Code, DM, Visual code, etc.

Hardware Specifications

Casing Material: Anodized aluminum
Main Controller: 10.1-inch external controller
Cooling System: Water-cooled
Positioning Method: Red light positioning and infrared focusing
Reflector Size: Standard 8.5mm
Power Supply: 220V
Maximum Power Consumption: ≤500W (water-cooled ≤800W)
Net Weight: 14kg
Interface: USB 2.0 / Photonic Trigger / Synchronizer

Software Specifications

Operating System: Linux P9
Supported File Format: PLT
Marking Types: Dot matrix and vector
