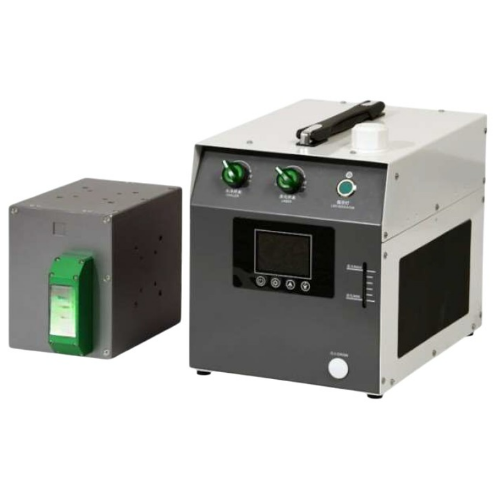

TTO UV Laser

Model: ZUT LASER-5

Category:

Booth No: N/A

Characteristic

Product Introduction:
The newly designed ultra-short-focus laser marking system features an ultra-short-focus design that effectively saves machine installation space. The laser head requires only 75mm ± 5mm from the marked object, making it nearly effortless to upgrade traditional TTO thermal transfer printers into low-carbon laser marking systems, aligning with today's ESG trends.

The UV laser source ensures that the product surface remains undamaged, making it particularly ideal for printing on thin films, aluminum foil, and other common flexible packaging materials, delivering exceptional marking results.

To accommodate various production speeds, a range of power levels, air-cooled, and water-cooled models are available, providing a stable, efficient, and eco-friendly solution for industrial production.

Basic Specifications:
Model: ZUT-Laser 5 / ZUT-Laser 10
Power: 5W / 10W
Machine Material: Anodized aluminum structure (optical path), sheet metal coating (control box + water chiller)
Laser Type: Nanosecond UV laser generator
Laser Wavelength: 355nm
Printing Method: High-precision two-dimensional scanning method
Marking Speed: ≤12000mm/s
Main Control System: Highly integrated motherboard, 10-inch external touchscreen, P9 marking system
Operating System: Linux
Cooling System: Water-cooled
Marking Line Type: Dot matrix and vector integrated (supports both dot matrix and vector marking)
Reflector Size: Standard 10mm
Marking Area: Standard 100mm × 100mm
Positioning Method: Built-in UV light preview positioning, dot-line focusing
Character Line Count: Unlimited within marking area
Production Line Speed: 0~300m/min (actual speed depends on material and marking content)
Supported Languages: Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Arabic, Persian, etc.
File Format Support: BMP / DXF / HPGL / JPEG / PLT
Supported Barcodes / QR Codes: Code128A, Code128B, Code128C, Code39, Code93, Ean13, PDF417, 01 Code, QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode, etc.
Power Supply: 220V
Maximum Power Consumption: ≤750W / 4A
Machine Net Weight (Optical Path + Control Box): 23kg
Optical Path Dimensions:
ZUT-Laser 5: 284mm × 141mm × 180mm
ZUT-Laser 10: 286mm × 142mm × 180mm
Control Box + Water Chiller Dimensions: 345mm × 249mm × 282mm
Interface: USB2.0 / Ethernet
Enclosure Protection Level: IP54 (Laser Galvanometer Part)
Pollution Level: 2
Overvoltage Category: Ⅱ
Operating Temperature Range: 5~40℃
