YOKOGAWA CQ1 Desktop High-Throughput Analysis System

Model: CellVoyager CQ1

Category: Cell Therapy and Regenerative Medicine

Booth No: M512

Characteristic

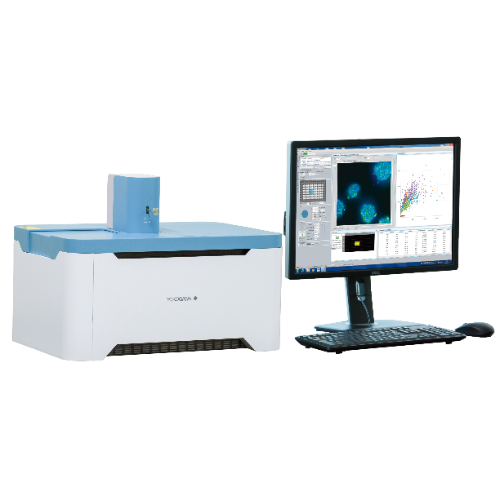

YOKOGAWA CQ1 Desktop High-Throughput Analysis System

CellVoyager CQ1 can perform 3D imaging and quantitative analysis of living cell clusters (such as cell spheroids in 3D culture vessels) while keeping the cells intact. CellVoyager CQ1 exports functional data in a universal format that can be read by a variety of third-party software for advanced data analysis. By integrating an external culture dish handling robot, a customized system based on CellVoyager CQ1 can be built.

Features of CellVoyager CQ1 System

•Spheroids, colonies, and tissue sections can be measured
▶Compared to traditional flow cytometry, there is no need to remove cells from the culture dish.
▶Nipkow spinning disk conjugate focus technology enables high-speed and low-damage 3D image acquisition.
▶Rich feature extraction facilitates complex cell image analysis.
▶Large field of view and mosaic function make large samples easy to image.

•Supports time-lapse imaging and live cell analysis
▶High-precision microincubator and low phototoxicity of confocal make time-lapse imaging and live cell analysis possible.
▶Maximum 20fps option for fast time-lapse photography. *1

•High-quality images with similar operability to conventional flow cytometers
▶Feature data and statistical graphs can be displayed immediately after image acquisition.
▶High-quality images that can be used as confocal microscope images.
▶Easy to trace from a single point in a graph to the original image and perform repeated measurements.

•Open platform-Small size, lightweight equipment, no darkroom required
▶Customizable handling robots and external systems can be connected. *2
▶Expandable to an integrated system as an image acquisition and quantification instrument.
▶FCS/CSV/ICE data formats can be read by third-party data analysis software.
▶Applicable to a variety of cell culture and sample culture dishes.
