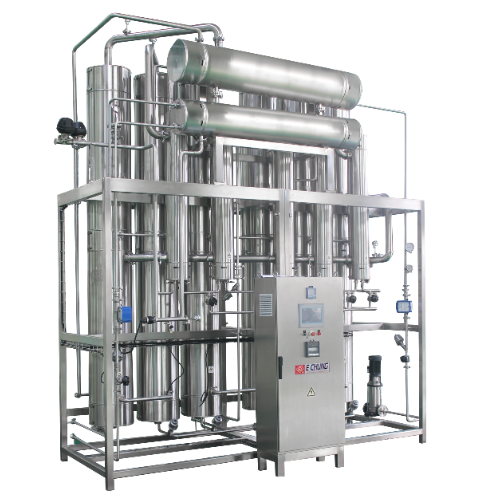

Multiple-Effect Distillation (WFI)



Model: MS

Category: Pharmaceutical Equipment

Exhibitor: E-CHUNG MACHINERY COMPANY

Booth No: L402



Characteristic



This still designed to meet FDA specification of Water for Injection. Meanwhile, according to the differs from the feed water that causing different
numbers of effects. The distillate resistivity quality is easy to obtain and its temperature is over 80℃ to avoid bacteria growing if the feed water at least is better than Deionized Water(DIW).

When the temperature exceeds 80℃, The water quality will undergo purification transformation (change between two phases),
From liquid to vapor, and then from vapor to liquid. The supply water evaporates through the heat exchanger in the evaporator, and its latent heat is used to make the evaporation process go through a series of 180-degree rotations in the separator through the centrifugal cyclone obstruction plate device. It uses the power of its flow to force out particles and water droplets, so that the vapor leaving the baffle plate does not contain dissolved solids and pyrogens. The particles and water droplets will fall back to the bottom and then be heated. Through cooling and condensation exchange, the purified water vapor will be condensed into the required distilled water, and a three-way valve will be used to drain the water with unqualified purity to ensure the quality of the distilled water, and finally save it. to storage barrels for injection pharmaceutical purposes.

*Water quality monitoring system.
*The product is more energy-saving than traditional single-effect type.
*Using double-tube plates design to prevent cross-contamination.
*Using double-tube plates for cooling system to prevent cross-contamination.
*Using double-tube plates for the first effect of evaporator to prevent cross-contamination.
*Each evaporator has a window to observe the internal situation of the evaporator.
*The heat-transfer tube’s expansion technology construction has good heat transfer efficiency and can be repaired and maintained.
*The internal design of the heat-transfer tube is using the temperature differences to make internal circulation, which improving the efficiency of temperature rising.
*The heat-transfer tube design of the heat exchanger improves the efficiency and achieves the energy-saving effect.
*Using the latest design for the steam-water separated baffle of evaporator to reduce endotoxins in the water effectively.
