STA 1600 Simultaneous Thermal Analyzer (Integrated TGA/DSC System)

Model: STA

Booth No: L1109

Characteristic

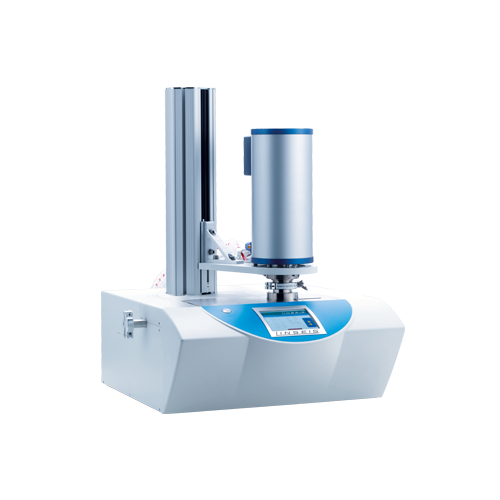

LINSEIS STA PT1600 Simultaneous Thermal Analyzer
The LINSEIS STA PT1600 is a high-end simultaneous thermal analyzer (STA) that integrates thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) with exceptional resolution and sensitivity. Designed with a modular architecture, the system supports interchangeable furnaces covering a wide temperature range from -150 °C to 2400 °C, as well as various sensor types and crucible materials. Its adaptability and numerous optional accessories make it suitable for a broad spectrum of research and industrial applications.

Key Features
High-sensitivity STA with superior TGA and DSC resolution

Modular system: interchangeable furnaces, sensor modules, and crucibles

Wide temperature range: from cryogenic (-150 °C) up to ultra-high temperatures (2400 °C)

Multiple sensor options: TG, TG-DTA, TG-DSC sample holders for enthalpy, Cp, and reaction temperature analysis

Vacuum-tight design: enables operation under static or dynamic atmospheres

Compatible with gas analysis systems: MS, FTIR, or EGA for evolved gas analysis

Optional high-pressure model (STA PT1600 HP): supports up to 5 bar operation

Gas environment flexibility: using gas generators and mixing systems for humidity, hydrogen, methane, CO₂, etc.

Accessories
Crucibles in various designs, materials, and sizes

Manual, semi-automatic, and fully automated (MFC-based) gas control units – up to 4 gases

Compatible with rotary and turbomolecular vacuum pumps

Software
Optional Chinese user interface

Export capability to Excel format (Raw Data output)

Comprehensive control over temperature segments, atmosphere, and data evaluation

Technical Specifications
Parameter Specification
Model STA PT1600
Temperature Range -150 to 500/700/1000 °C
RT to 1000/1400/1600/1750/2000/2400 °C
Weighing Capacity Max. 5 / 25 / 35 g
Balance Resolution 0.025 / 0.1 / 0.5 µg
Vacuum Level Down to 10⁻⁵ mbar
Pressure Capability (optional) Up to 5 bar
Sensor Types TG / TG-DTA / TG-DSC
Thermocouple Types E / K / S / B

Application Areas
Materials: polymers, organics, rubber, composites

Industries: automotive, aerospace, academic and industrial R&D, cosmetics, pharmaceuticals, food science, chemicals, electronics

Typical use case: pyrolysis analysis of rubber and complex organic mixtures
