Scanning Electron Microscope



Model: CUBE-II

Category: Instruments

Exhibitor: FST INTERNATIONAL H.C. LTD.

Booth No: L1109



Characteristic

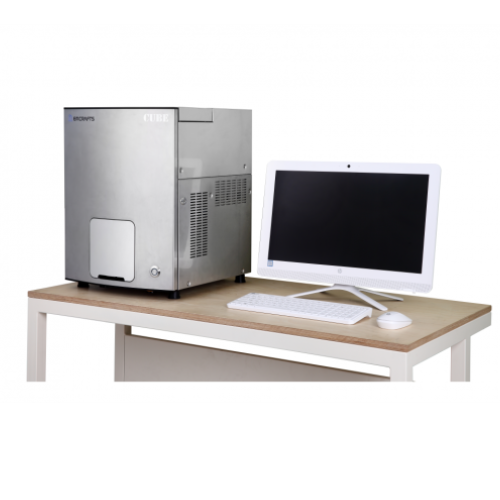

CUBE-II Desktop Scanning Electron Microscope (SEM)
The CUBE-II is a high-resolution desktop scanning electron microscope (SEM) that combines compact design with powerful functionality. It is widely used in fields such as materials science, life sciences, electronics, and educational training.

Key Features
Five-axis motorized stage enabling 360° flexible sample observation

Up to 200,000x magnification, revealing ultra-fine surface details

Equipped with auto-focus and auto-exposure for user-friendly operation

Low-vacuum imaging mode allows observation of non-conductive samples without coating

Integrated with high-speed image acquisition and advanced image processing software

15.6-inch touch screen interface for intuitive, one-touch operation

Application Fields
Materials Science: powders, fibers, metallic structures

Electronics Inspection: PCB boards, semiconductor components

Biological Specimens: insects, plant tissues

Teaching & Laboratory Research

Technical Specifications
Specification Value
Magnification 20x – 200,000x
Resolution 3.0 nm at 30 kV
Maximum Sample Size Ø 70 mm
Accelerating Voltage 1 – 30 kV
Vacuum Modes High vacuum / Low vacuum
Stage Travel X / Y / Z / Tilt / Rotate

Product Video
Watch the demo video:
🔗 https://www.tvcbook.com/video/1238700.html?code=e0d0_aJeYY7DVa5O0wS5hv8SCGmpVBUdK1clzkC5ANrtobz6oA7qmg
