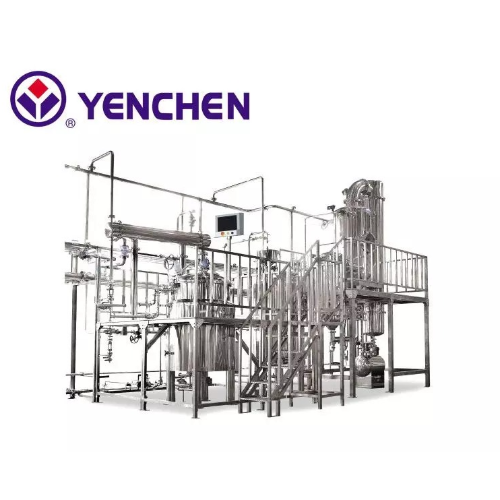

Extraction, Concentration, Granulation Turnkey Equipment

Model: ECVC

Booth No: L610

Characteristic

Basket Type of Extraction Equipment:
1. The herbs are loaded in the punched hole screen basket and are lifted and loaded by crane.
2. The construction is simple and required a small space.
3. The temperature during operation is controlled automatically.
4. With the condenser, it can operate in a complete contained condition. (Under normal atmosphere)

Agitating Type of Extraction Equipment:
1. Loading, water charging, extraction, draining, discharging, filtering, extruding, , conveying and CIP cleaning are all controlled from the central control room.
2. Three-dimensional design, require small working area.
3. Bigger working capacity, need less water than basket type.
4. The extracted herb is agitated, therefore the efficiency of extraction is better.
5. Water loading can be measured automatically,it is very accurate and convenient.
6. Temperature and timer of extraction can be controlled automatically.
7. Material loading: it is closed and effective loading by vacuum suction conveying.
8. The working surrounding is clean and temperature is lower.
9. Fully closed process which meets the sanitary requirement.
10. By condenses system, it can work under a total closed operation in the atmosphere pressure without losing the essence and flavor of oil.
11. Using vibration shifter, very effective for separating and filtering.
12. Auto liquid drain out (for 1st time extraction) material discharge (for 2nd time extraction)
13. The discharged herbs can be extruded by the extruder to make most of the residual extraction liquid out of herbs.
14. The extruded herbs can be conveyed to outside of room.
15. The process visualization with touch screen monitor system can be controlled directly from the central control room.
16. CIP auto cleaning system an be added as option.
17. The explosion proof system can be added if the solvent is alcohol.
18. The recovery system for essence oil can be added as option.

Vacuum Concentrater:
1. Rising membrane evaporator: suitable for mass production
2. Heat exchanger: all made of sanitary piping
3. High condensing efficiency by circulating water (no need for chiller). Safety the energy.
4. The horsepower of the vacuum pump is small to save energy, but can reach the high vacuum degree.
5. With WIP automatic cleaning system.
6. Low temperature concentration: 45 ~ 60 °C
7. High vacuum's degree: -600 ~ 700mmHq
8. High capcity of concentration: Model 30 ~ 1500L/Hr (Single Stage)
9. Also it provides the multi-stage type concentration which can save more energy.
10. The scraper type membrane concentrator and centrifugal type concentration are also available.
